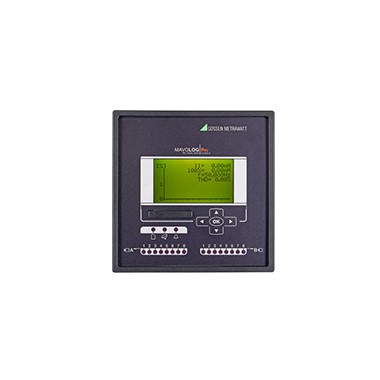

德国GMC 电能质量分析 MAVOLOG PRO

德国GMC 电能质量分析 MAVOLOG PRO

Main features:

4 current and 4 voltage measuring inputs with auto-ranging

Up to 20 additional inputs and outputs possible

Can be used in railway, power and onboard electrical systems (16 to 400 Hz)

High resolution of the voltage and current measuring inputs - 32 kHz / channel

Spectral analysis in accordance with EN 61000-4-7 up to the 63rd harmonic

Acquisition of 10 user-defined sub-harmonics

Interfaces: Ethernet, USB, RS 232, RS 485

Communication protocols: TCP/IP, Modbus and DNP3

Expanded flicker measurement per EN 61000-4-15 for various voltage levels

Time synchronization via GPS or NTP
